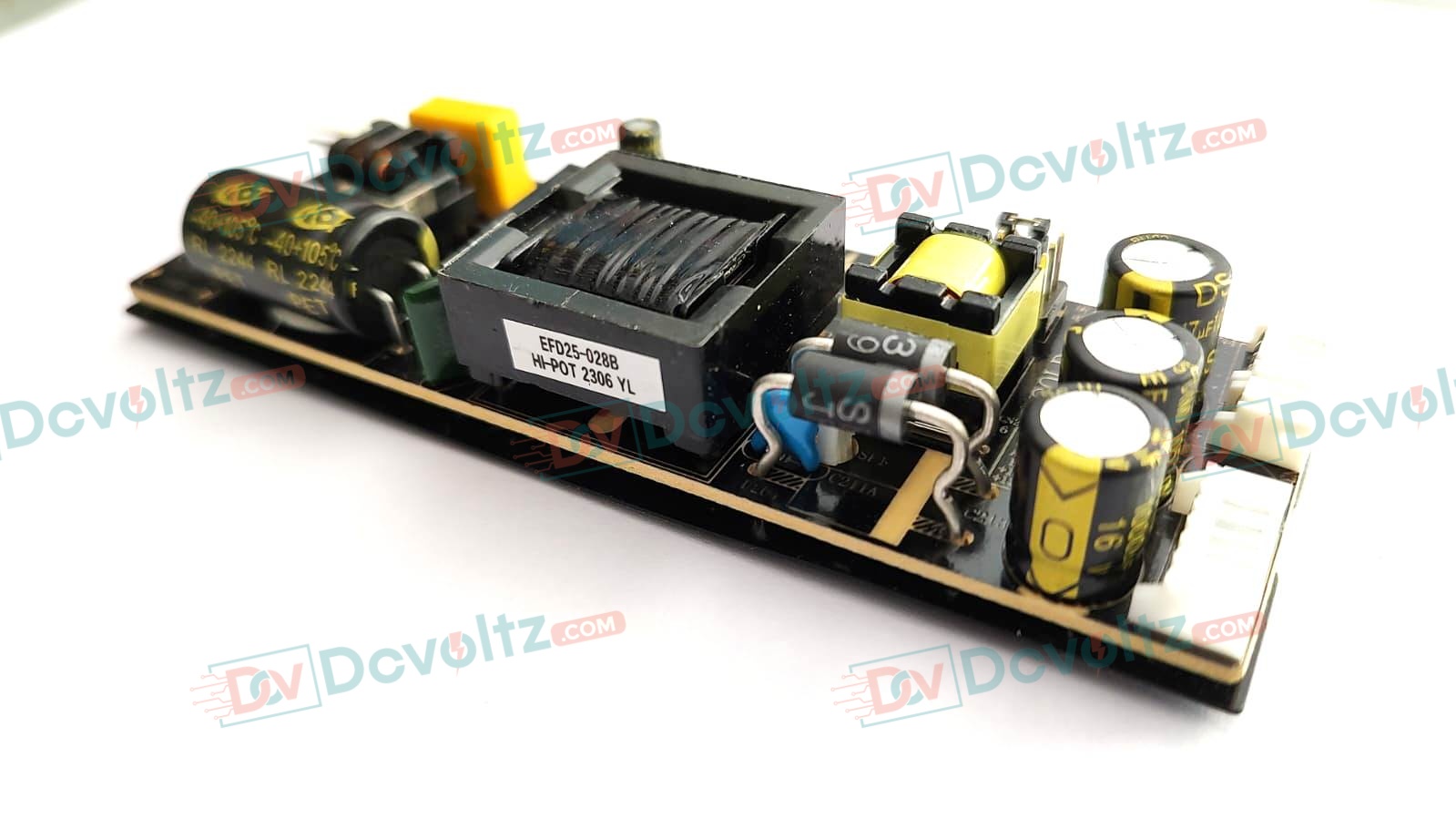

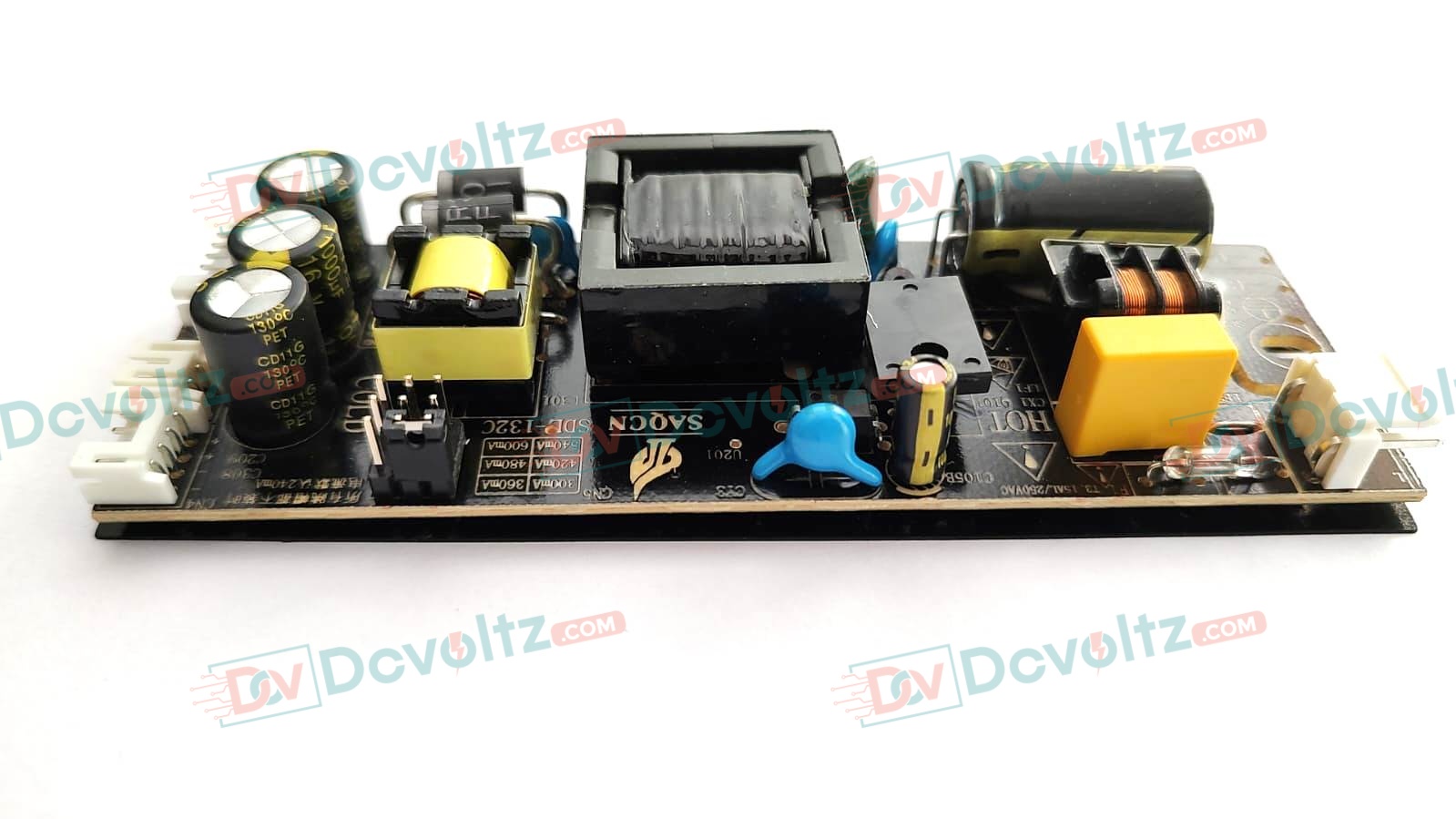

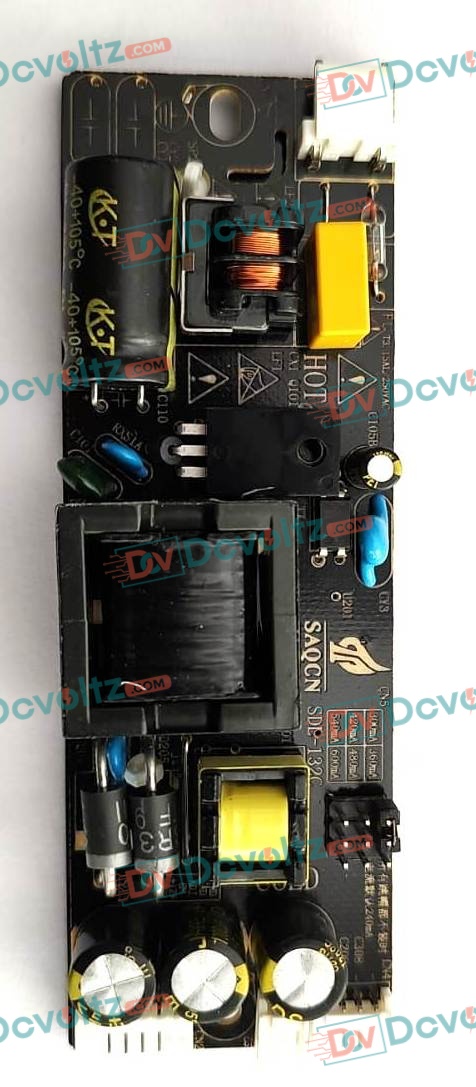

SDL-132C 36W Led-Lcd TV Power Supply Board Input 100-240v

SDL-132C 2-In-1 Power Supply Specification Input Input Voltage -AC90~264V Variation Frequency:- 47~63Hz Input Frequency-50~60Hz Output Output Voltage-12 volts Output Current-1.5A Output Power – 36w Output Type – Single Voltage tolerance – ±1% Safety protection Over Voltage Protection-120% min Over Current Protection-120% min Short Circuit Protection-Auto Recovery Electronic characteristics Operating Temperature–10~30℃ Overshoot at Turn-on-10% Max. When power supply on or turn off. Turn-on Delay Time-3 second Max. Load RegSPT, SVT, SJT, NISPTation-5% Product dimension-125*40*20mm Weight93g
